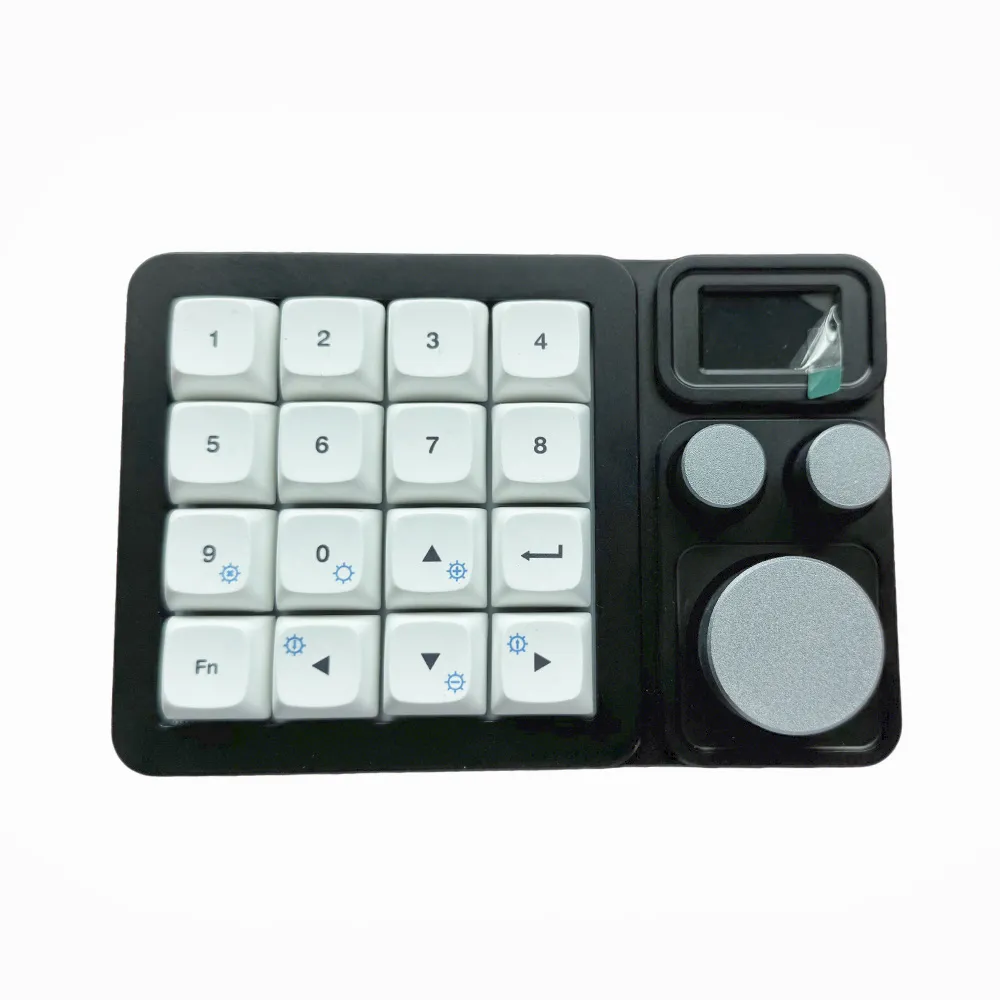

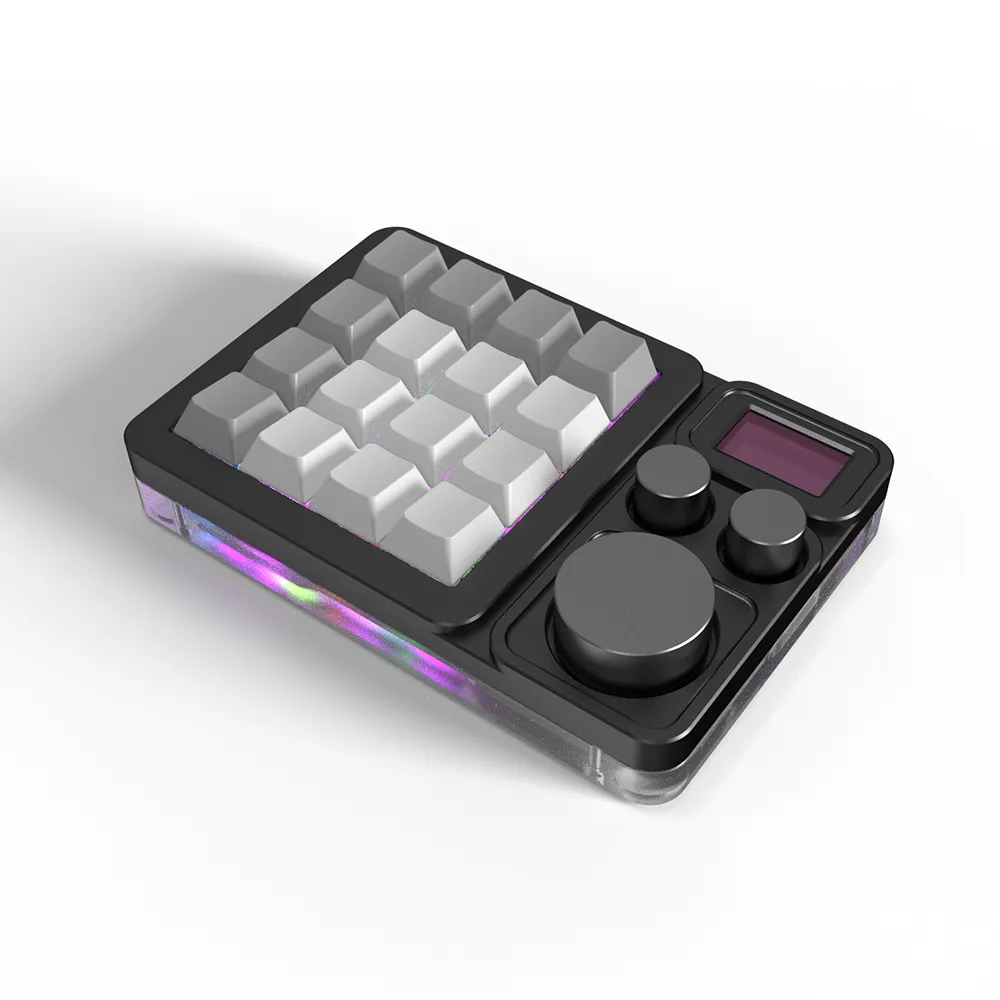

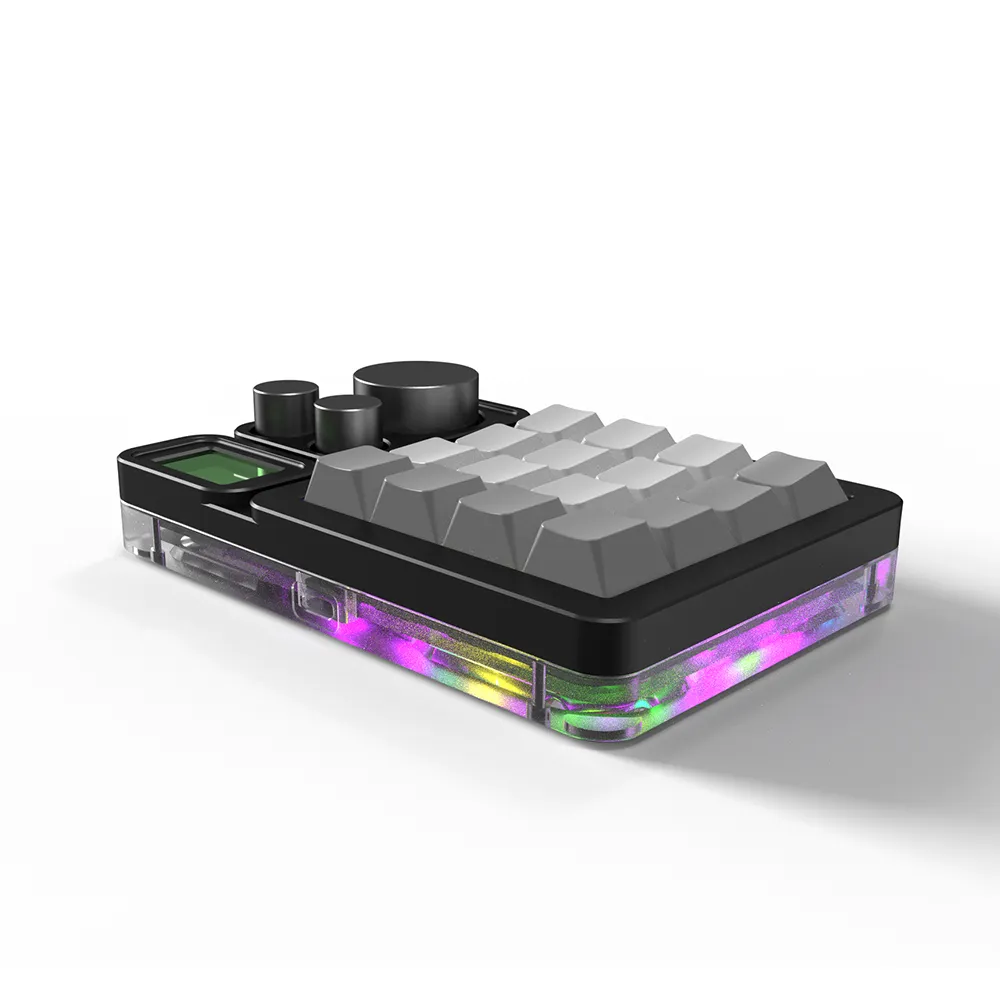

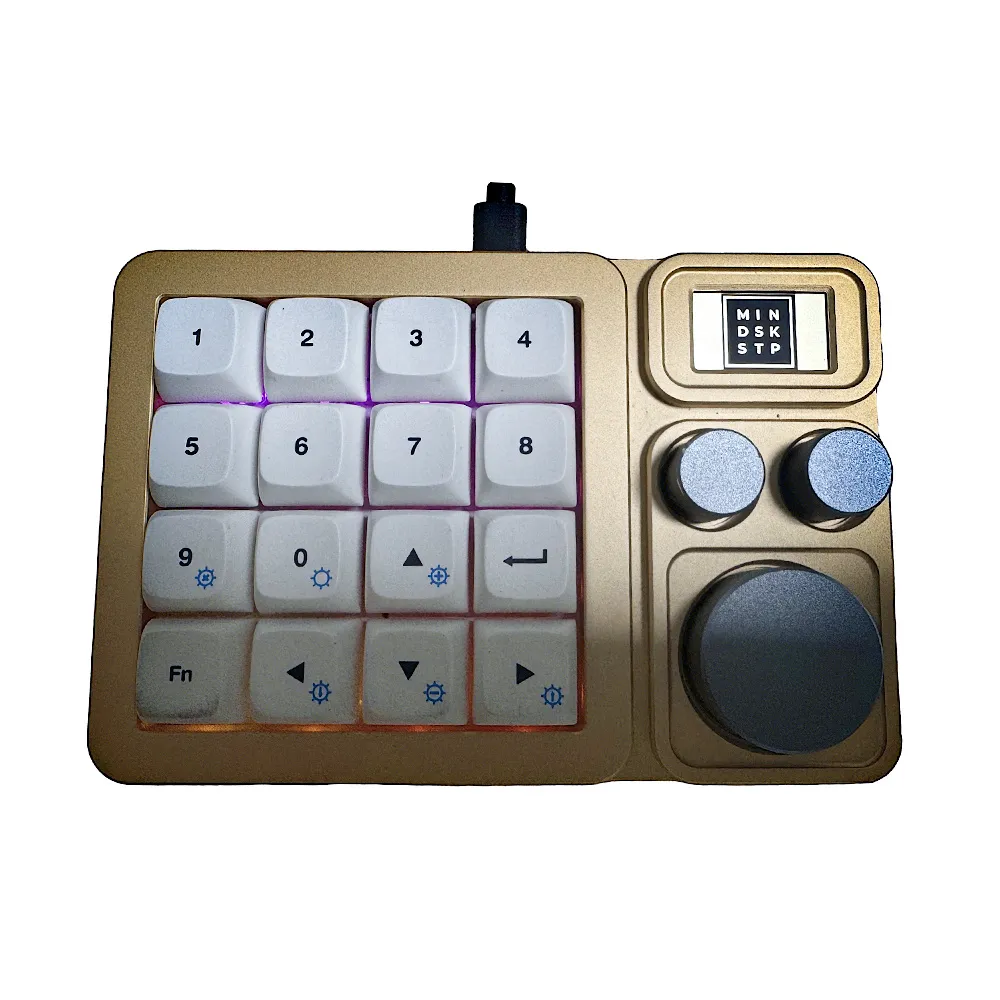

The GK-16 Magnetic Switch Keyboard combines mechanical switch feel with smart controls. It features magnetic switches, dye-sublimation keycaps, and an aluminum alloy top case, equipped with a 1.14-inch screen and dual knobs (volume/media/page scroll). Designed for laptops and keyboards without a numeric keypad (such as 87-key, 82-key, 68-key, 61-key, etc.), the GK-16 serves as a standalone numeric keypad. It not only fills the missing number input function but also enhances desktop aesthetics and operational efficiency with RGB backlighting and multi-function knobs.
Mechanical and electrical characteristics
Basic Parameters IC scheme GuangSanXing solution
USB+TYPE-C cable Data cable OD: 3.8*1800mm, black braided cable with neutral nickel-plated head, single magnetic ring
Number of keystrokes twelve
size 140.5**95*31.9±0.2mm
color Customizable weight
working method Matrix scanning
LOGO Customizable
Parameter characteristics
|
Character key pull force |
Over 1.5 kilograms |
|
Character key pull force |
Over 1.5 kilograms |
|
Key spring elasticity |
50±10g |
|
Keycap spacing |
19.00mm±0.05mm |
|
Activation force |
50±10g |
|
Tactile point force |
60±10g |
|
Operation sequence |
4.0±0.5mm |
|
Preloading height |
2.0±0.6mm |
|
Tactile sensation |
When pressing any position on the key at a rate of 4 times per second, there is no sensation of discomfort. |
Environmental parameters
|
Working temperature |
0 to + 55 ℃ |
|
Work humidity |
40%~80% |
|
Storage temperature |
-20°C to + 60°C |
|
Storage humidity |
≤93% (40°C) |
LED features
|
LCD Size |
1.14 inch |
|
Resolution |
135(H)RGB x240(V) pixels |
|
Display Colors |
262K colors |
